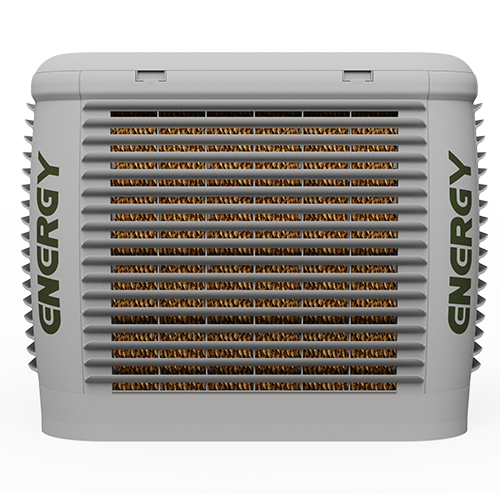

Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 2

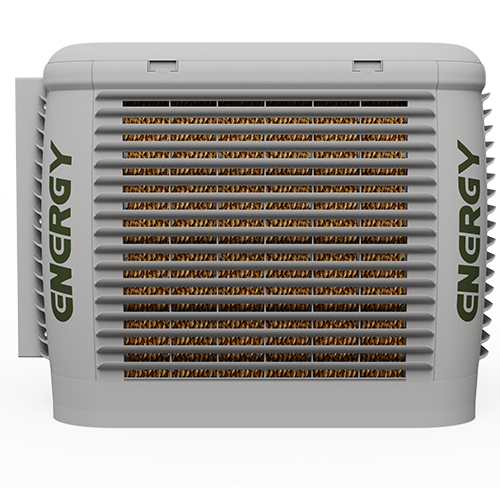

Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 3
Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 4

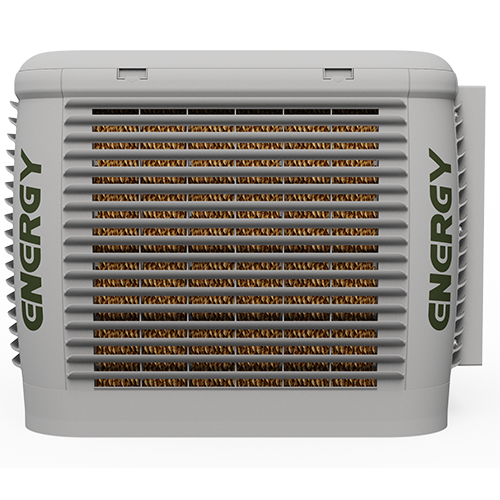

Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 5
Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 6

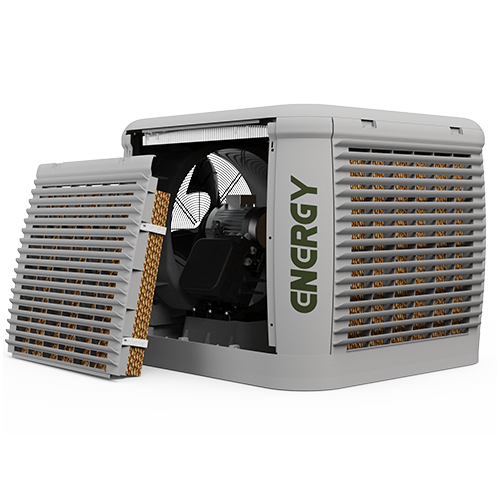

Evaporative Cooler-Polymer Body <br>Thermostatic & variable Speed with Axial Fan AC12000P - Image 7

Evaporative Cooler-Polymer Body
Thermostatic & variable Speed with Axial Fan AC12000P

Technical catalog
General Catalogue

Description

  • CE Certified, 801382008480
  • Polymer body by beautiful design
  • Structural stability of the polymer body with special formulation
  • Body color stability under sunlight with High quality European Anti-High Quality European Anti-UV
  • Easy assembly and disassembly with insert technology
  • Three-Phase Electromotor
  • Electromotor equipped with soft start technology
  • Automatic and manual operation
  • Airflow adjustment in 20 steps with inverter
  • Thermostatic LCD control panel with remote Automatic and manual operation and timer
  • Reverse fan operation to exhaust air Reduced water and electricity consumption with drive and thermostat
  • Electromotor with copper wire coil and high protection class (IP54)
  • Air flow according to the desired temperature
  • Low-noise operation at set point temperature (Automatically)
  • Starting the motor at high speed and smartly changing air flow according to the desired temperature
  • Ability to overcome pressure drop caused by air duct condition (Automatically)
  • Air filter with fine texture to prevent dust and insects entering
  • Operating voltage range between 185 to 245 volts.
  • Device troubleshooting and performance control
  • Equipped with an Automatic drainage system and water level sensor
  • Evaporation efficiency of 85% using a special cellulose pad (4090 series) with a thickness of 10 (cm)
  • Steady cooling efficiency by uniform distribution combi system of water on the cellulose pad during the season
  • Safety control RCCB (Residual-Current Circuit Breaker) and Double-Pole Circuit Breaker
  • Equipped with an Automatic drainage system and water level sensor
  • Device troubleshooting and performance control

Additional information

Technical specifications Unit AC 1200 P
Cooling System – Evaporative
Pad Thickness cm 10
Cooling Efficiency % 85
Air Flow m³/h 12500
cfm 7350
Cooling Area (Approx.) m² Consult Sales Engineering
Motor Power hp 2
kW 1.5
Electrical A, V, ph 0.36~5.9, 220, 1
Weight + (water weight) kg 76+(40)
Dimensions
(Height, Length, Width)		 cm 88×109×113
Air Throw m 8
Duct Length (Max) m 15
