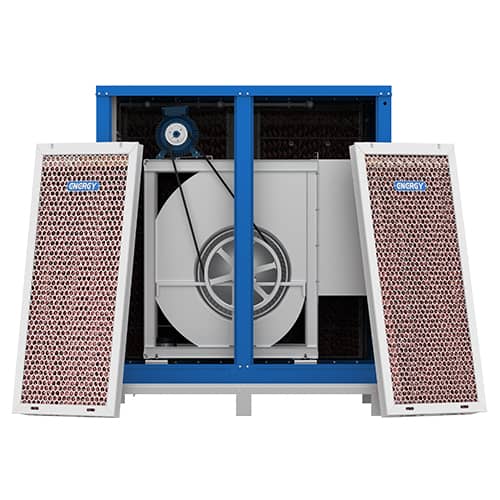

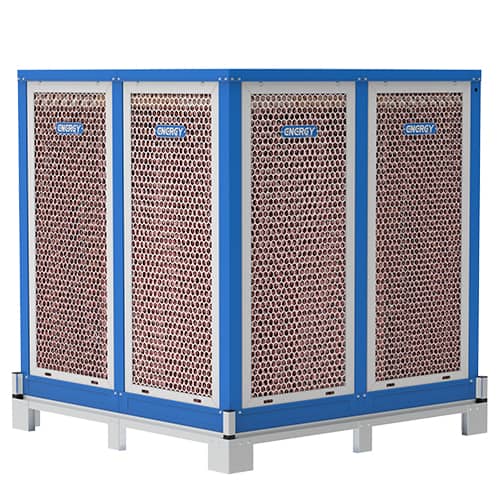

Evaporative Cooler (Side-Flow)
EC2500
Description
- CE Certified, 801382008480
- Three-Phase Motors-Single Speed
- Outdoor installation: cool air distribution with duct (Max:25m)
- Air flow adjusting with inverter (as order)
- 30% cooler than aspen pad evaporative cooler
- Reduce air pressure drop (reduce motor power consumption) by using cellulose pad
- High cooling efficiency and reaching comfort temperature in a shorter time.
- Uniform distribution of water on the cellulose pad
- Special coating of industrial resin in cellulose pads: Reducing the growth bacteria
- Reducing the transfer of harmful respiratory bacteria due to reduction of the transfer of tiny droplets of unevaporated water in the air flow
- Long life cellulose pad (3 to 5 years)
- Easily Detachable and Reas semblable
- Strong structure, low vibration and noise
Additional information
| Technical specifications | Unit | EC1800 | EC2500 |
| Cooling System | – | Evaporative | |
| Pad Thickness | cm | 7.5 | 10 |
| Cooling Efficiency | % | 80 | |
| Air Flow | m³/h | 18000 | 25000 |
| cfm | 10600 | 14700 | |
| Cooling Area (Approx.) | m² | Consulting from sales engineering of an energy company | Consult Sales Engineering |
| Motor Power | hp | 5.5 | 7.5 |
| kW | 4 | 5.5 | |
| Electrical | A, V, ph | 8.5, 380, 3 | 10, 380, 3 |
| Weight + (water weight) | kg | 265+(130) | 400+(320) |
|
Dimensions (Height, Length, Width) |
cm | 168×150×150 | 188×177×177 |
| Duct Length (max) | m | 25 | 30 |
