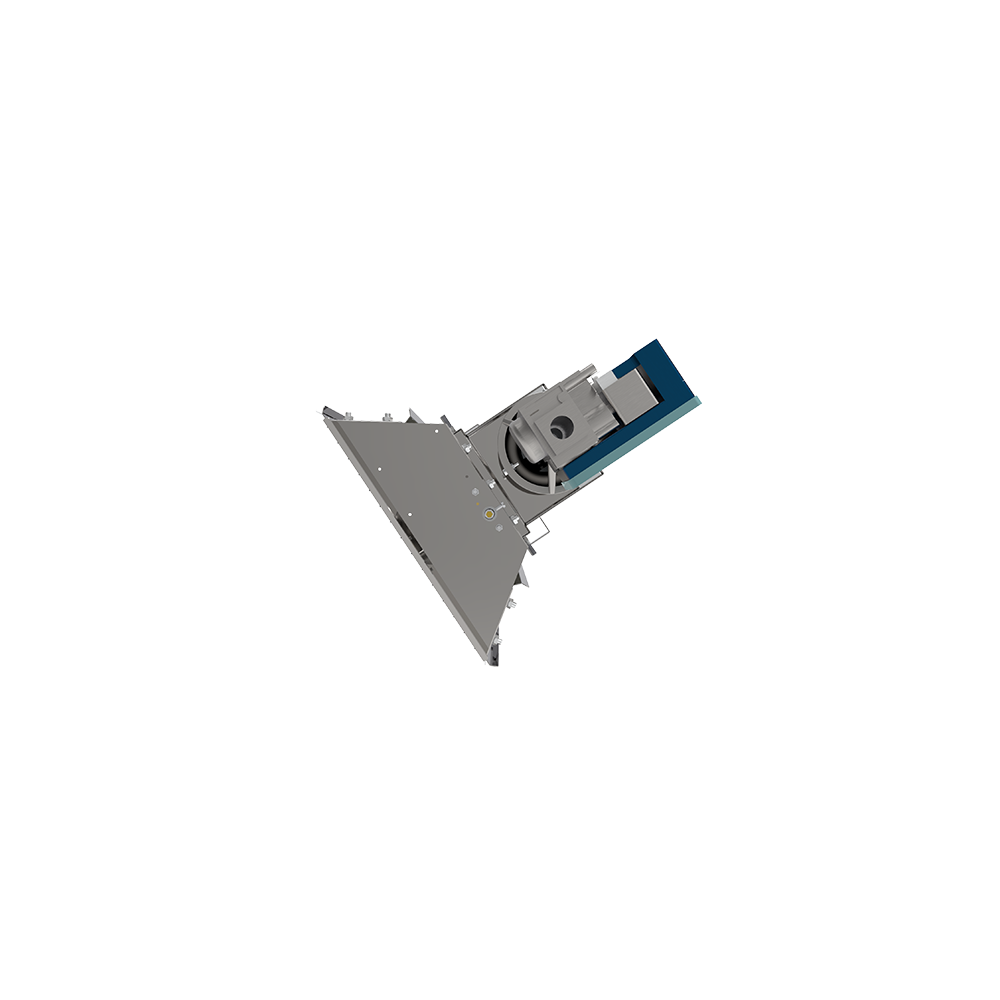

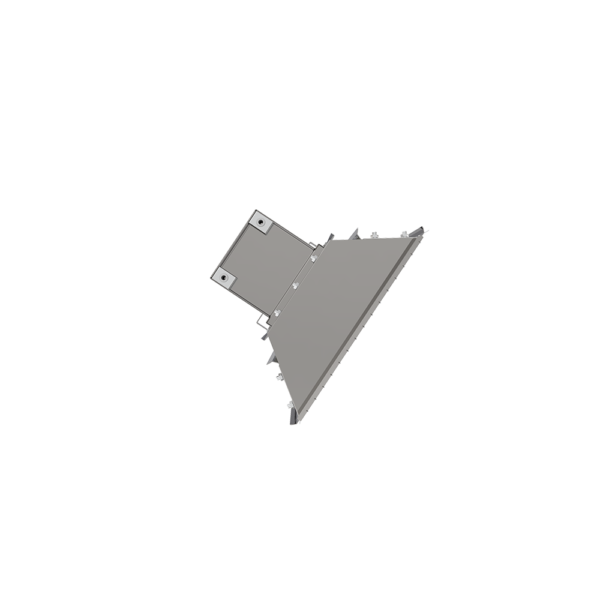

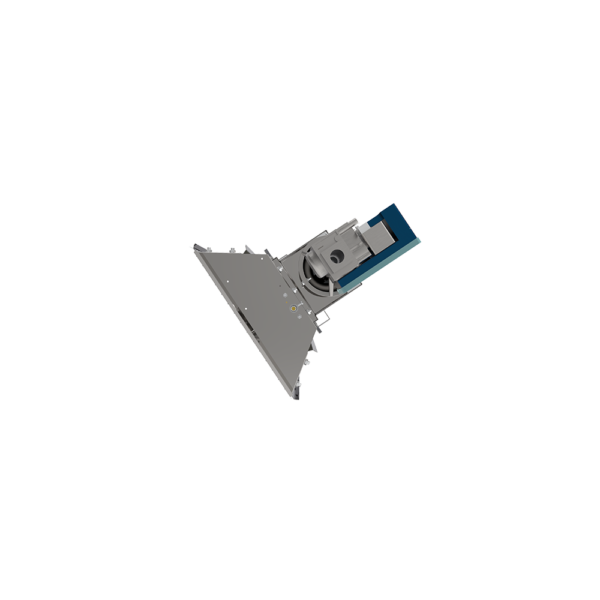

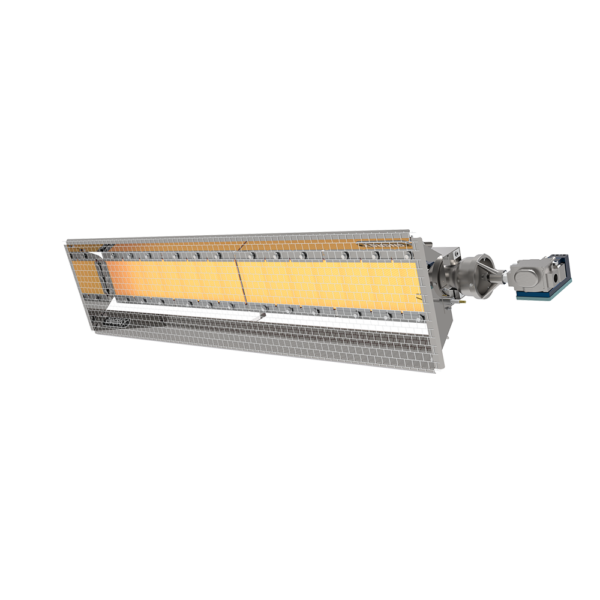

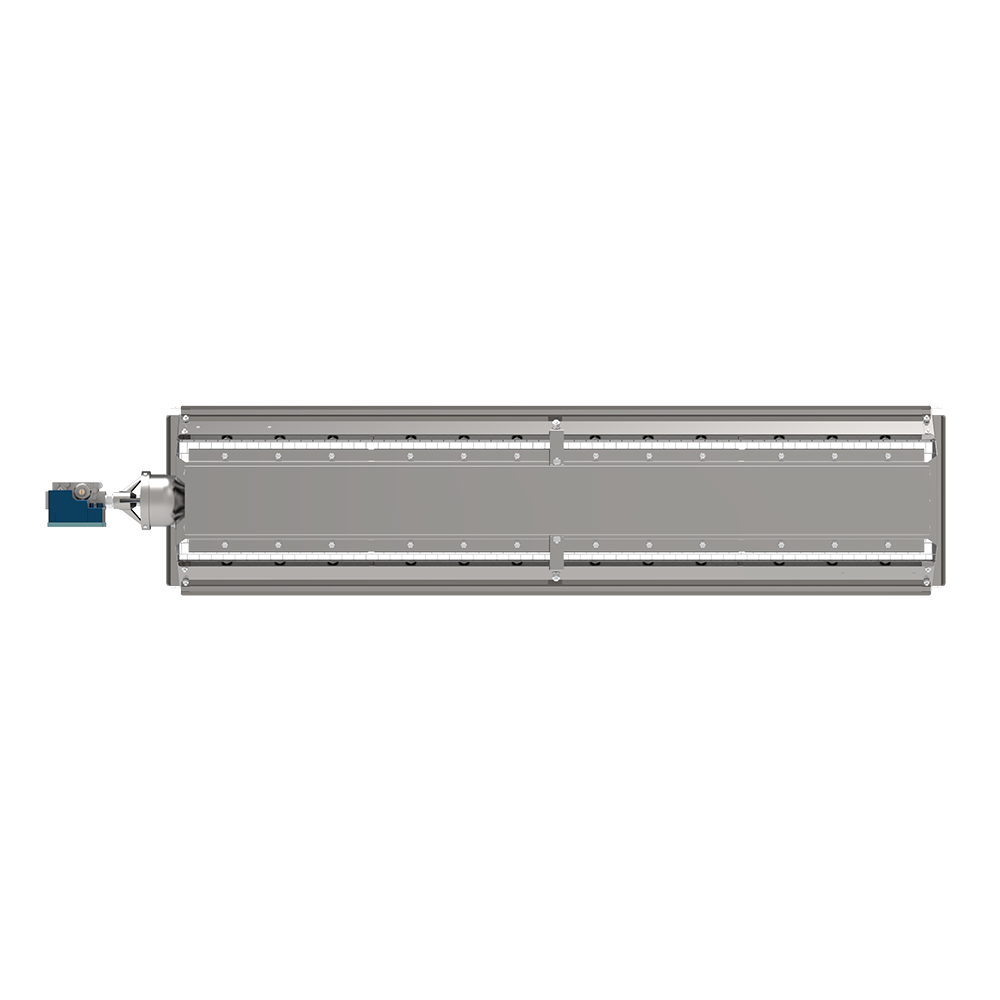

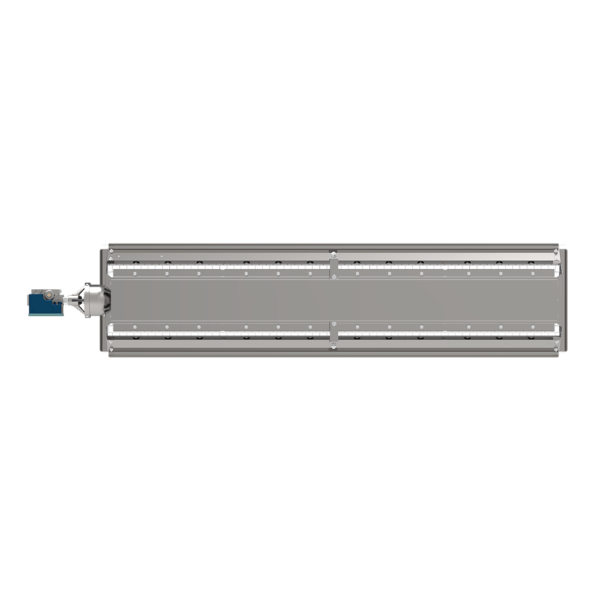

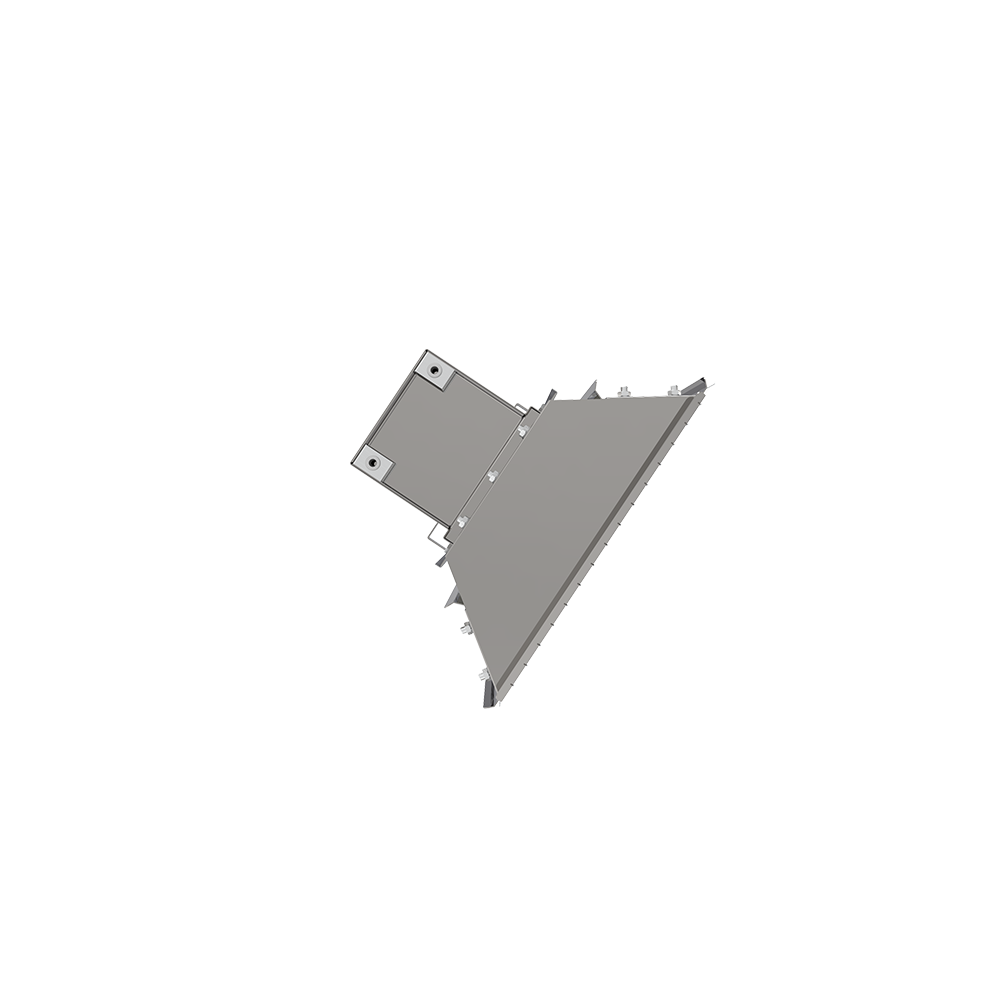

Infrared Heater
GR 0100
Description
- CE Certified, 1312CU6350 High response thermal speed
- High response thermal speed (lower than 30 sec)
- Low consumption with high efficiency
- High safety by a gas control valve (SIT Group-ITALY)
- Installation on the wall or ceiling
- Can be connected to a thermostat
- Reduce installation and maintenance costs

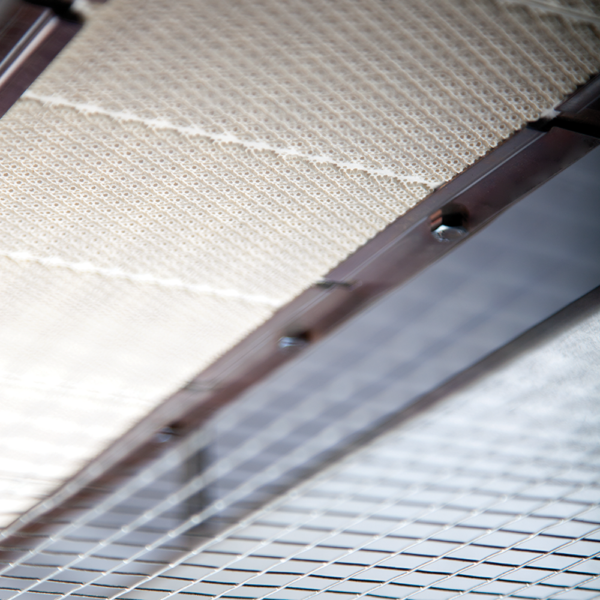

- Ceramic panel guard
- Indoor installation
- Natural gas (can be converted to LPG – as order)
- Installation height: (GR0100: 5m – 7m)
- Can be angled installation: (0° to 30°)
Note: Maximum ceiling height = 3m
Additional information
| Specifications | Unit | GR0100 | GR0200 | |
| Fuel type | – | NG | LPG | NG |
| Fuel consumption | Per hour | 2.7 m³ | 2 kg | 5.3 m³ |
| Heat input | Kcal/h | 25000 | 50000 | |
| kW | 29 | 58 | ||
| Heat area (Approx.) | m² | 110 | 150 | |
| Electrical | A, V, ph | 0.5,220,1 | ||
| Dimensions (Height, Length, Width) |
cm | 22×164×34 | 22×168×54 | |
| Weight | kg | 21+7 | 36+7 | |
