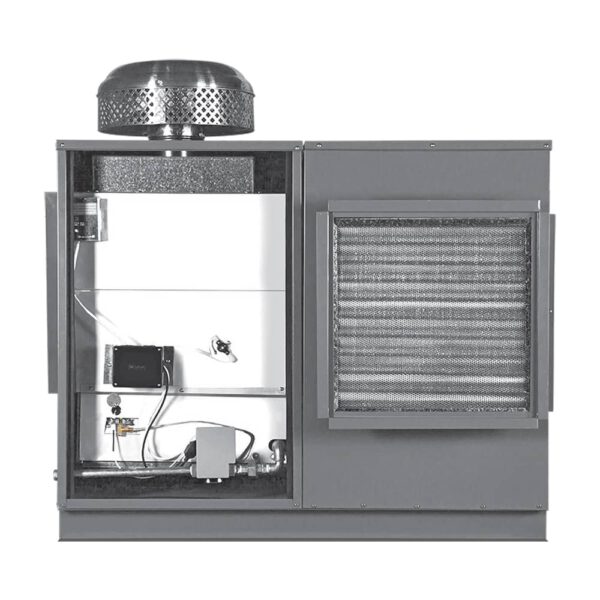

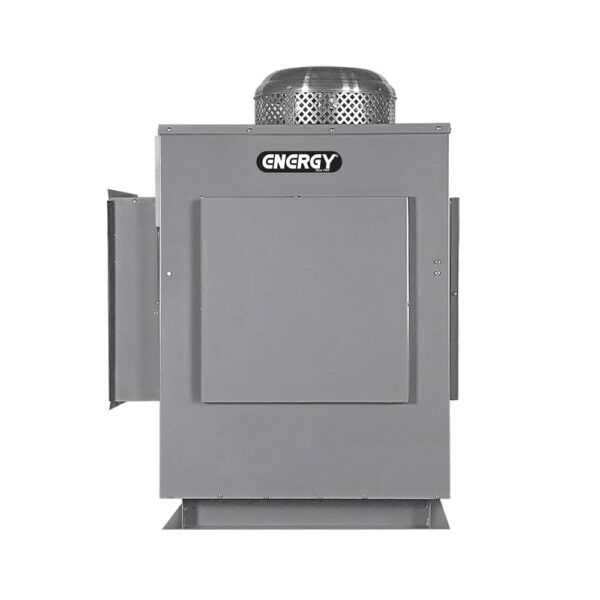

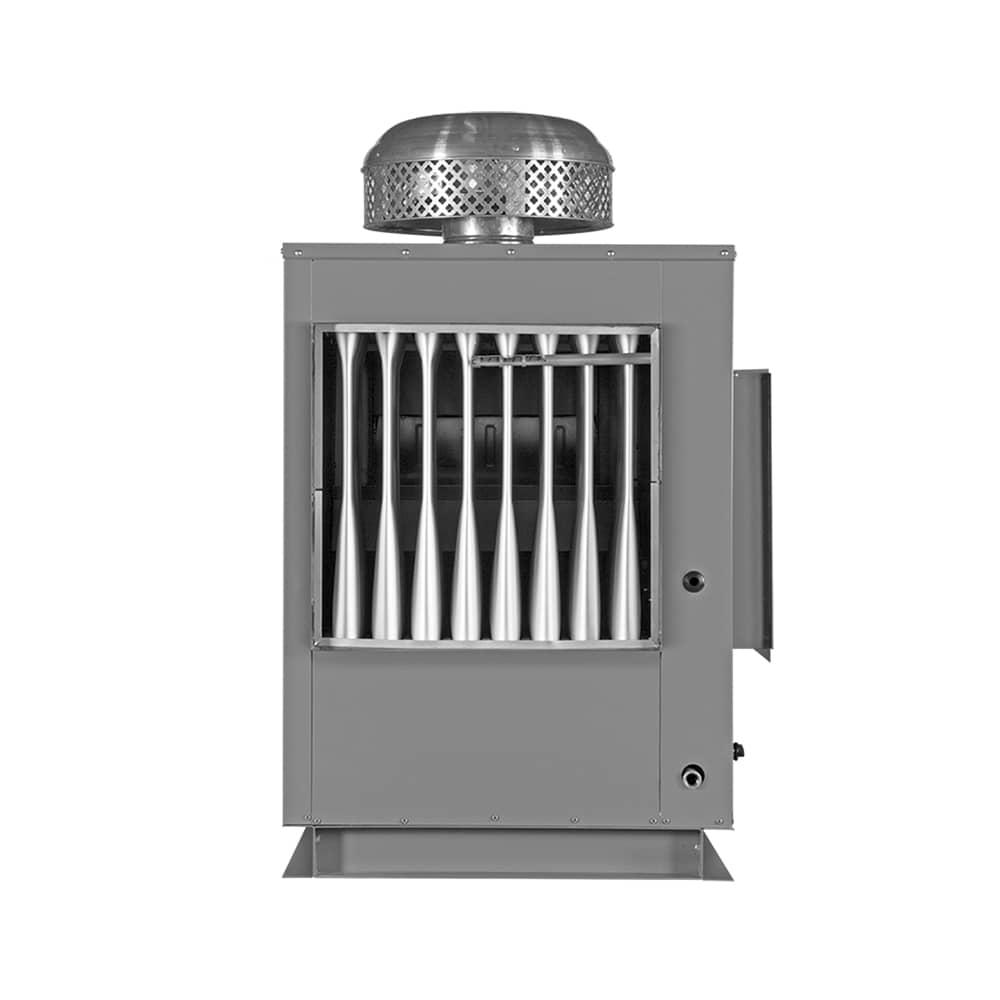

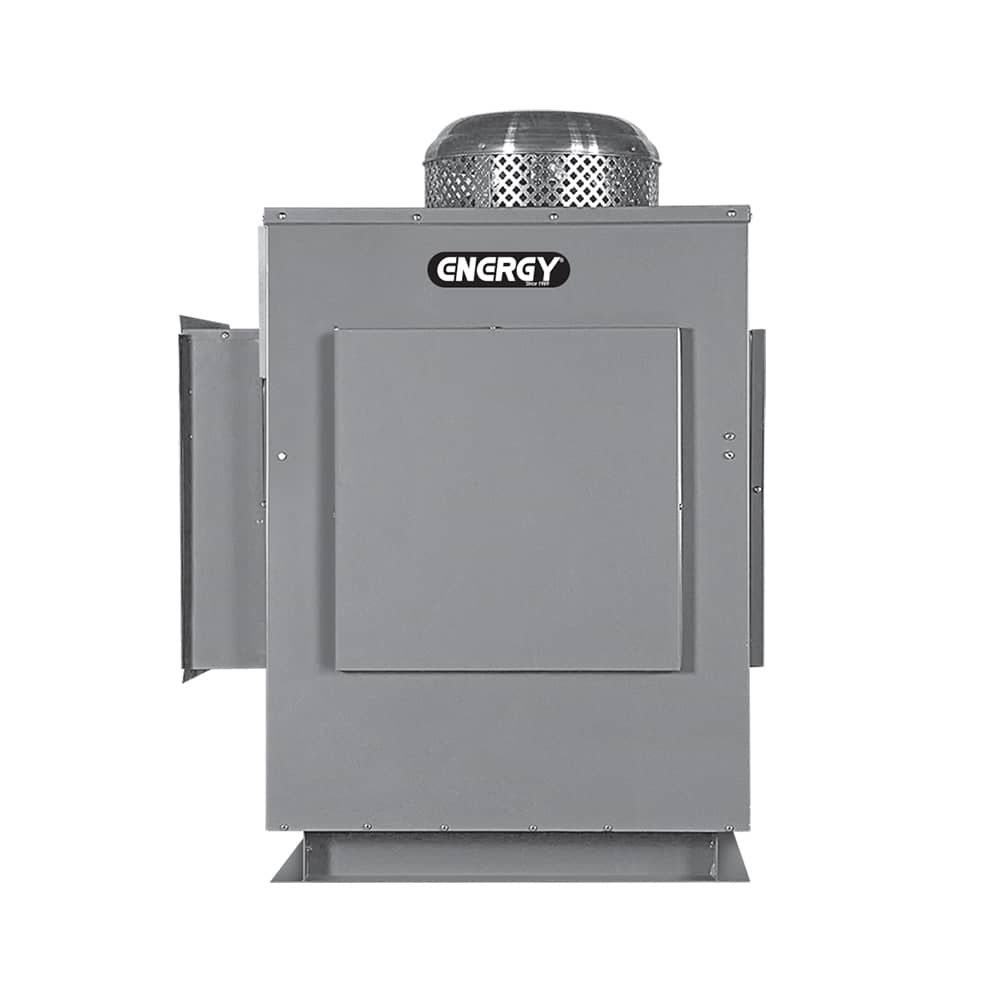

Gas – Fired Duct Heater
GH 0660

Technical catalog
General Catalogue

Description

  • High heating efficiency and reaching a comfortable temperature in a shorter time.
  • High Safety by thermostatic fan- limit control system
  • Gas control valve (SIT Group – ITALY)
  • Delay in fan operation before and after ignition

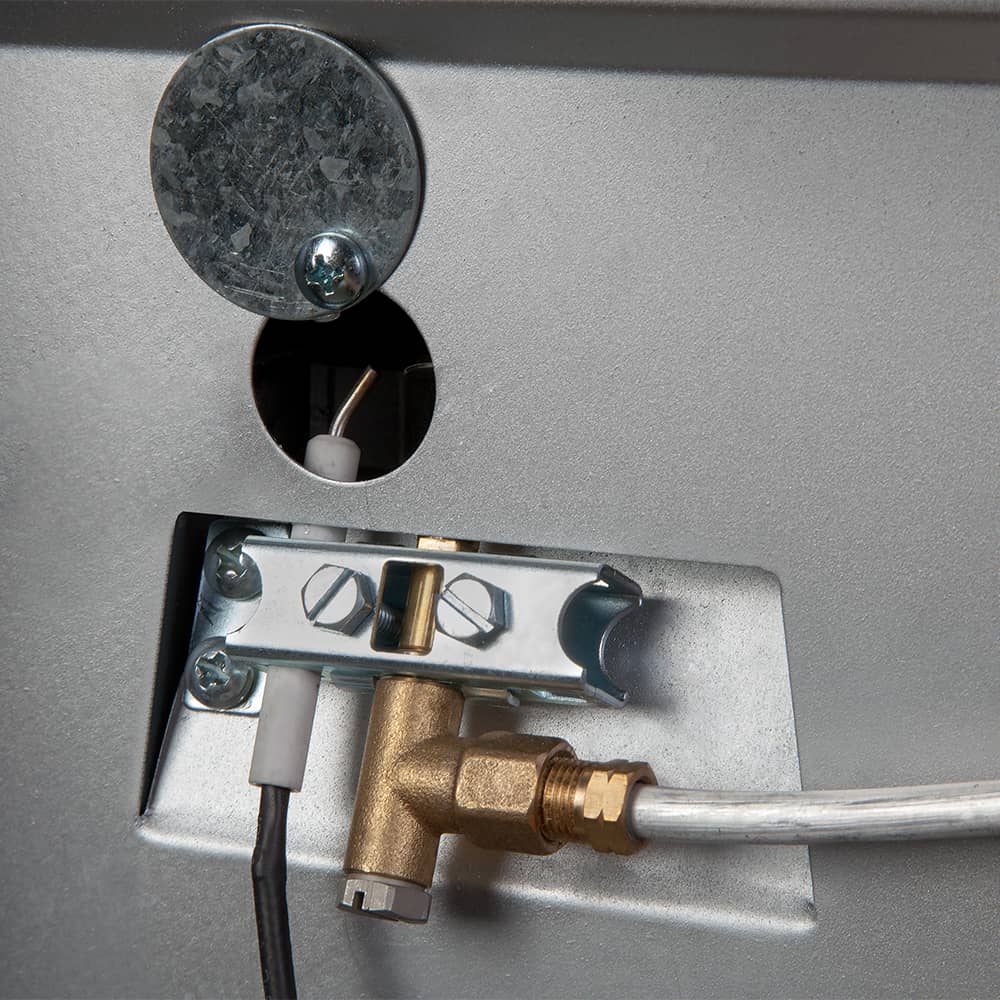

  • Equipped with flame monitoring system
  • Low noise with high efficiency centrifugal fan
  • Low fuel consumption with room temperature control
  • Thermostatic control system and low fuel consumption

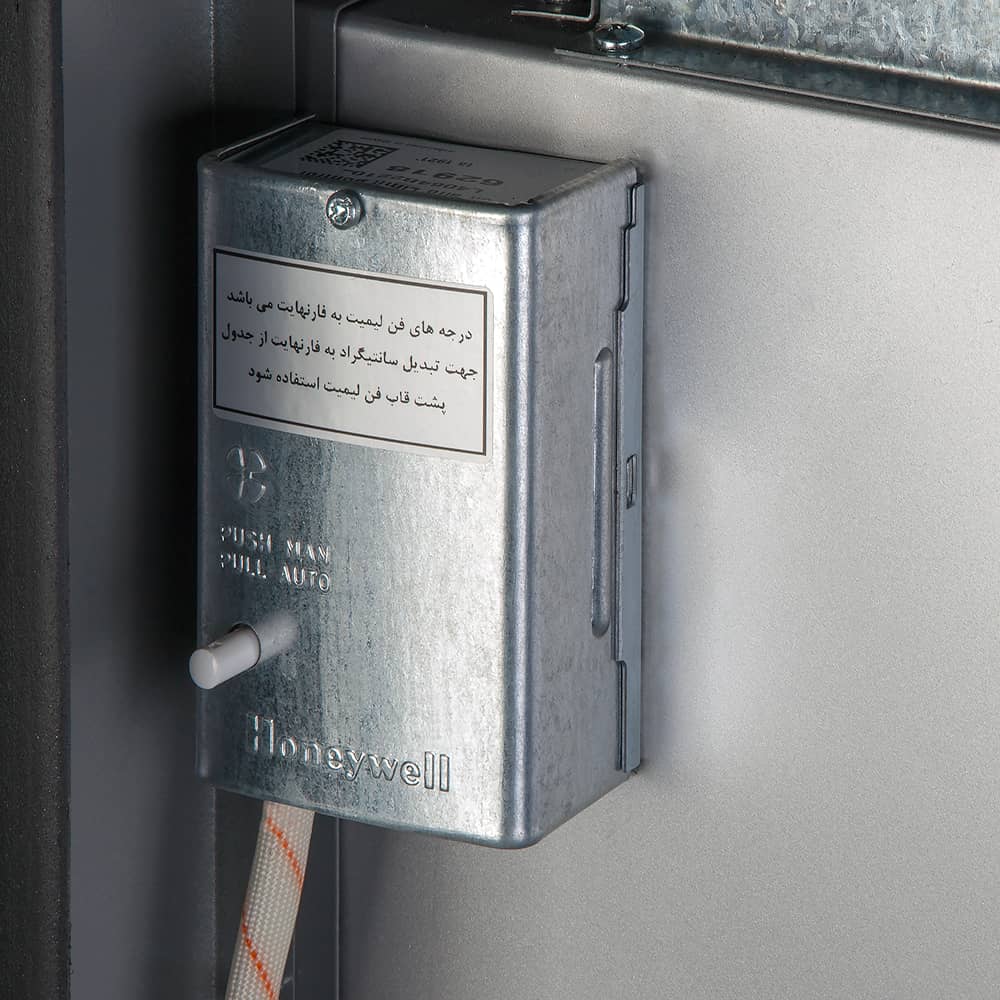

  • High safety by thermostatic fan- limit control system
  • Automatic fan control by heat exchanger temperature
  • Flame monitoring system
  • Low noise with high efficiency centrifugal
  • Rust-resistant body with epoxy polyester coating
  • High thermal resistance internal components with silicon coating (up to 450 )
  • Air flow with supply and return ducts (Max: 15 m)
  • Easily detachable
  • Outdoor installation

    Applications: Residential, Industrial, Commercial, Leisure facilities, Religious, Sport venue, medical center, Educational cultural

Additional information

Technical specifications Unit GH0660
Heating system – Hot Air
Fuel type – NG
Fuel consumption Per hour 2.7 m³ – 4.8 m³
Heat input Kcal/h 25000 – 45000
kW 29 – 52
Thermal efficiency % 80
Heat space (Approx.) m³ 450-900
Electrical A, V, ph 3.5, 220, 1
Air flow m³/h 3400
Cfm 2000
Fan type – centrifugal
Motor power hp 1.03
kW 0.77
Duct length (max) m 15
Nox class – 3
Dimensions
(Height, Length, Width)		 cm 83.5×41×70
Weight (Gross) kg 65
