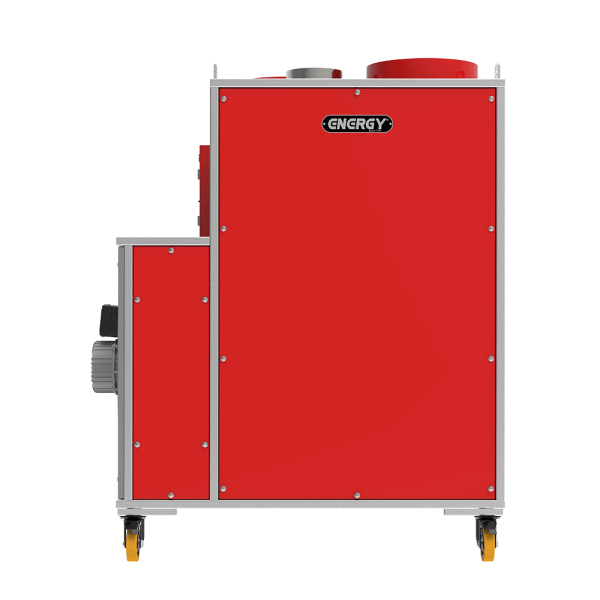

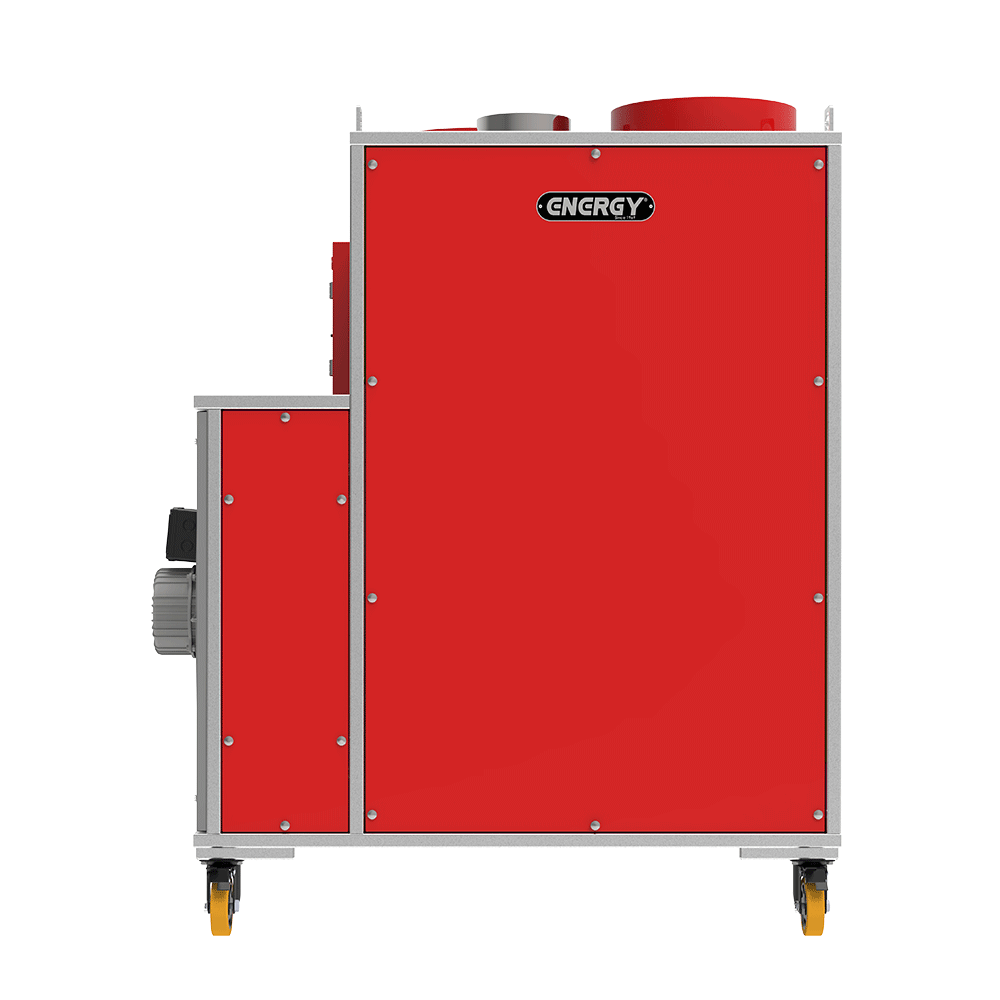

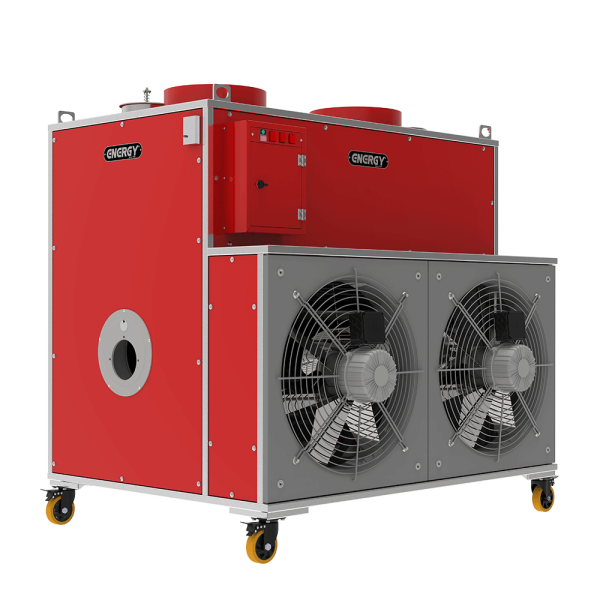

Air Furnace Gas
GF 2560

Technical catalog
General Catalogue

Description

    • ISIRI Certified: 12885
    • Actual thermal capacity 200.000 kcal/h
    • Thermal efficiency (Net-Gross) 88%-80%
    • Plate heat exchanger with high heat transfer and less pressure drop
    • Low heat loss with double-walled body and thermal insulation
    • Durable combustion chamber using rock-wool insulation
    • Stainless steel combustion chamber (AISI 304)
    • Rust-resistant body (hot galvanized profile)
    • Four Way hot air distribution (Free/with duct Max:10m)
    • Cleanable heat exchanger
    • Easy to move with industrial wheels
    • Safety discharge system for combustion products
    • Thermostatic control and low fuel consumption
    • Combustion chamber temperature control system
    • Fan control system
    • Burner equipped by Pre-purge system
    • High efficiency dynamic balanced axial fan
    • Suitable for high humidity applications
    • Easy operation and maintenance

    Applications

    • Greenhouses
    • Livestock
    • Industrial



Additional information

Model

GF 2560
Fuel Type

NG
Heat Input (kcal/h)

250000
Fuel consumption (per hour)

26.6
heating Space (Approx.)m3

3000 – 5000
Electrical

3/380/3
Dimensions ((height/lenght/width) (cm))

168x171x145
Weight (Kg)

460
Flue Diameter (Cm)

20
