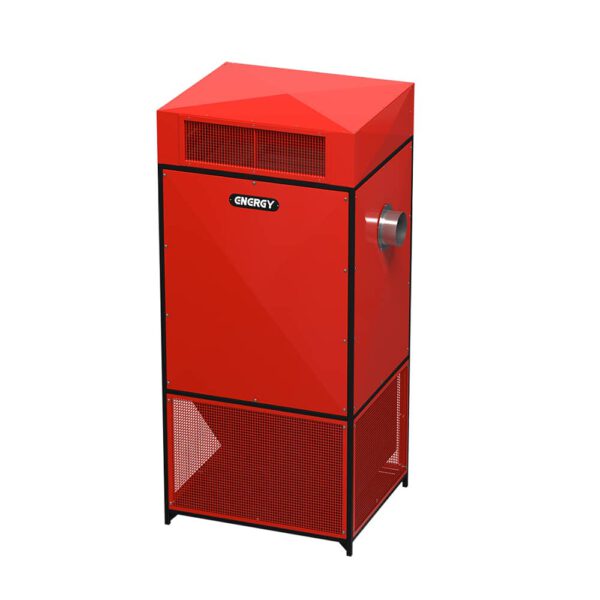

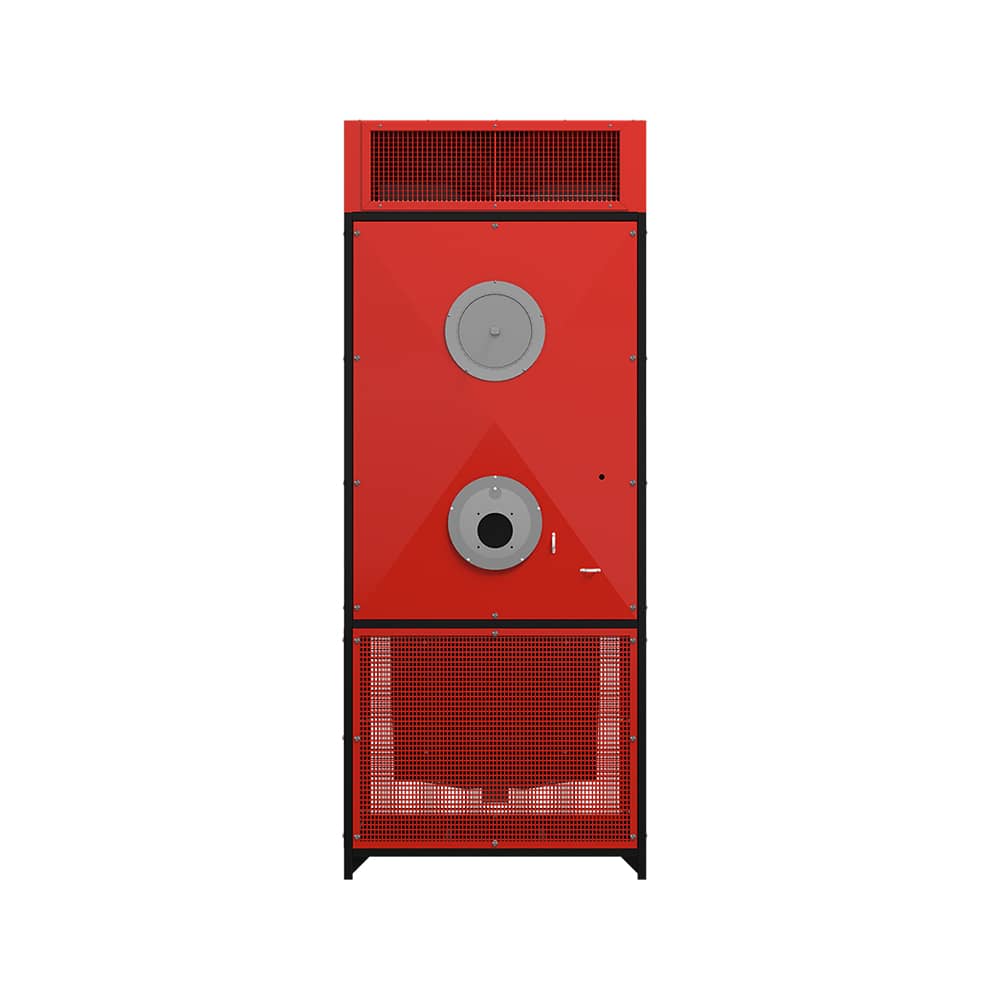

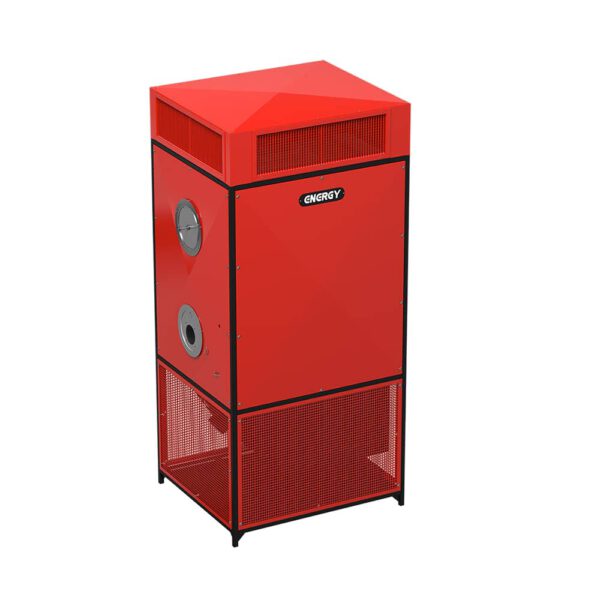

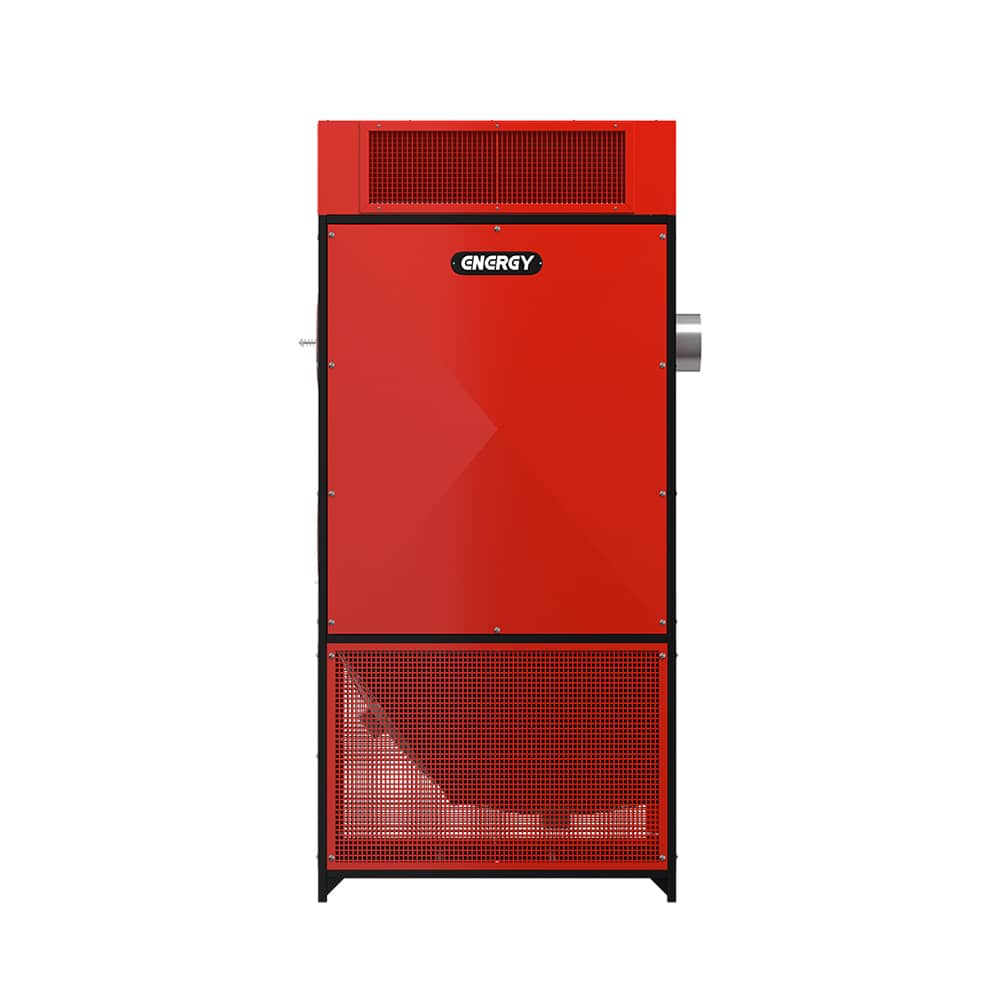

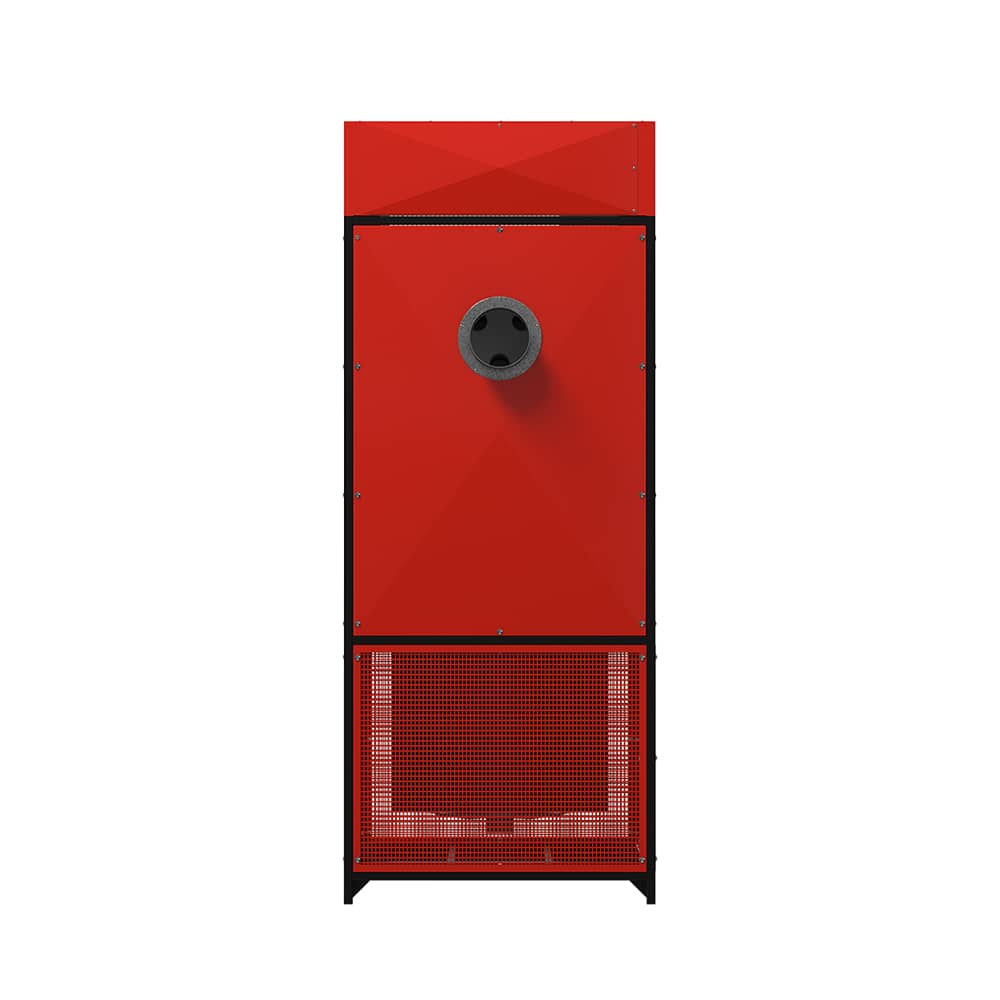

Air Furnace Gasoil - Gas GF 1560 AX

Description

Stainless steel combustion chamber
Can be equipped with thermostatic control system and low fuel consumption
High safety by fan limit – control system
Delay in fan operating before or after burner on
High efficiency centrifugal fan
Automatic fan control by heat exchanger temperature
Increased reliability pressure relief in the combustion chamber
Three-Phase control panel
Reduced heat loss with double-wall body insulated with rock wool
Warm air flow with supply & return ducts (outside installation- Max:20m)
Air quality control and fuel saving with fresh air supply and return ducts (Outdoor Installation)
Can be connected to supply and return duct and dual burner (natural gas & gas-oil) available vertically or horizontally
Can be ordered vertically standing or horizontally
Rust-resistant body with epoxy polyester coating
High thermal resistance internal components with silicon coating (up to 450 )
Indoor / Outdoor Installation

Specifications	Unit	OF1500	GF1560
Fuel type	–	Gasoil	NG
Fuel consumption	Per hour	16.7 Lit	16 m³
Heat input	kcal/h	150000
	Kw	175
Thermal efficiency (Gross)	%	79
Heating space (Approx.)	m³	2500 – 4000
Electrical	(A, V, ph)	5, 380, 3
Fan type	–	centrifugal
Air flow	cfm	6300
	m³/h	10700
Dimensions (Indoor or Vertical) (Height, Length, Width)	cm	270×142×110
Dimensions (Indoor or Outdoor / Horizontal) (Height, Length, Width)	cm	123×226×142
Dimensions (Indoor or Outdoor / Vertical) (Height, Length, Width)	cm	240×142×125
Weight (gross)	kg	510
Flue diameter	cm	20
