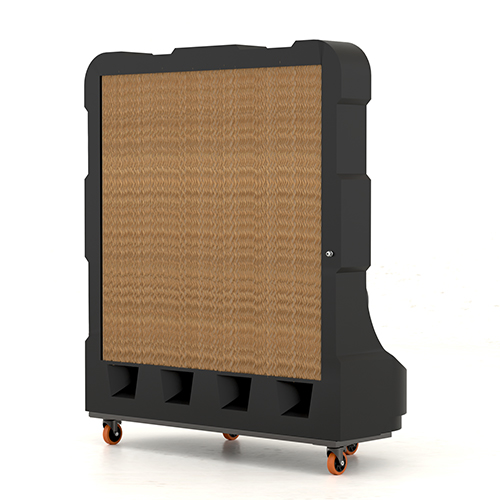

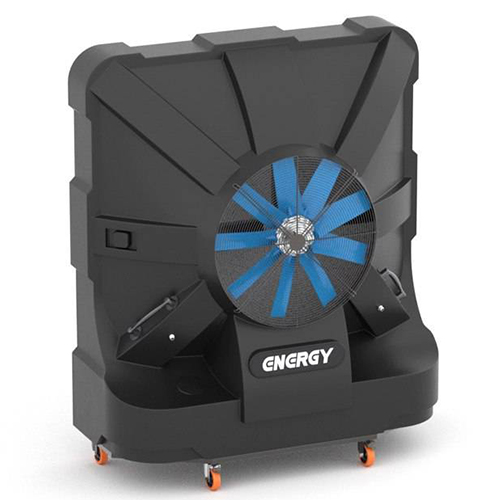

Industrial Evaporative Cooler with Axial Fan Variable Speed (BLDC) Ac2000B

Description

Spot cooling in large spaces
Low electrical power consumption
Variable speed fan (20 Steps)
Manual / Automatic operation (Thermostatic)
Resistant polymer body
High evaporative cooling efficiency with special cellulose pad
Easy to move with industrial wheels
Low installation and maintenance cost
Portable no need to structure and ducting

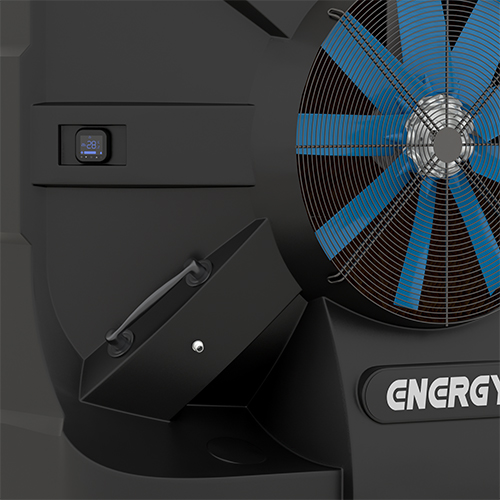

Gradually adjusting speed using electronic board and control panel
Automatic operation around set point temperature in comfort zone with minimum fan speed
Water pump protection system (Water level gauge)
Automatic makeup and drain system
Low electrical power consumption with axial fan and BLDC motor
Automatic fan speed adjustment according to the ambient temperature
Equipped with industrial wheels and handles
Removing belts, pulleys and bearings surface
Increasing the life of the electric motor by starting the cooler at low speed
No motor damage due to voltage fluctuations

Technical specifications	Unit	AC 2000 B
Cooling System	–	Evaporative
Thickness Pad	cm	15
Cooling Efficiency	%	85
Air Flow	cfm (m³/h)	11750 (20000)
Air Throw	m	22.5
Cooling Area (Approx.)	m²	280
Fan Type	–	Axial Fan
Motor Power	kW (hp)	1.1 (1.5)
Electrical	A, V, ph	9,220,1
Weight	kg	125
Tank Volume	Liter	180
Dimensions (Height, Length, Width)	cm	223×186×80
